QIJIANG GEARBOX TRANSMISSION ASSEMBLY QJGT-9TS1300

QJGT 9TS1300
  • FOB Price:negotiated
  • Min.Order Quantity:1unts
  • Supply Ability:1000unit/units per month
  • Port:SHANGHAI,SHENZHEN,GUANGZHOU,BEIJING,URUMCHI
  • Delivery mode: by air, by sea, by international courier, etc.
Product detail
Brand Name:QJGT Part Number:9TS1300 Place of origin:QIJIANG
Part Name:Gearbox assembly Machine:Dump trucks, trucks, cranes, etc.
Packaging&delivery
Packaging Detail:wooden box or carton
Delvery Detail:two days after payment.
Product description

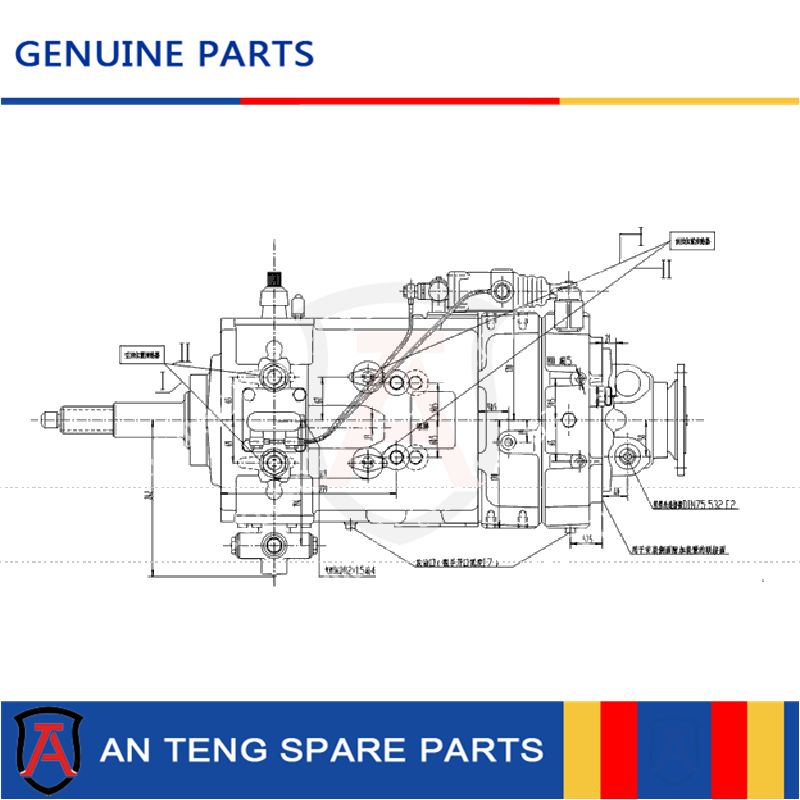

QIJIANG GEARBOX TRANSMISSION ASSEMBLY QJGT-9TS1300


QJGT 9TS1300
QJGT 9TS1300
MODEL 9TS1300
Technology typeSingle intermediate shaft synchronizer mechanical transmission
Gear number 9 forward, 1 backward
Installation length 735mm
Maximum input torque 1300N.m
Lubricating oil quantity 13L
Center distance154mm
Weight 310KG
Maximum applicable load 25T
Applicable engine input power 150-270KW
Optional add-onhand brakepower takeoffpart-time case
Manipulating typemanual direct EPS
Recommended configuration clutch housing SAE1#
Applicable emission standardsG5G4
Adaptation model, logistics Dump trucks, trucks, tractors, cranes, etc.


Gear position and gear ratio
First gearSecond gearThird gearFourth gearFive gearSix gear Seven gear Eight gear Nine gearReverse gear
LH LHLHLHLHLHLHLHLHLH
13.048.486.044.303.432.471.891.281.0011.77
9.73 6.37 4.65 3.43 2.53 1.86 1.36 1.00 0.73 11.60
13.30 8.65 6.16 4.39 3.50 2.52 1.93 1.31 1.02 12.01
9.92 6.50 4.74 3.50 2.58 1.90 1.39 1.02 0.74 11.83
